Overview
The packing machine—born from relentless research and development,and strictly in compliance global quality standards.All kinds of types of complete, professional packaging solutions, ready to meet every need you have.

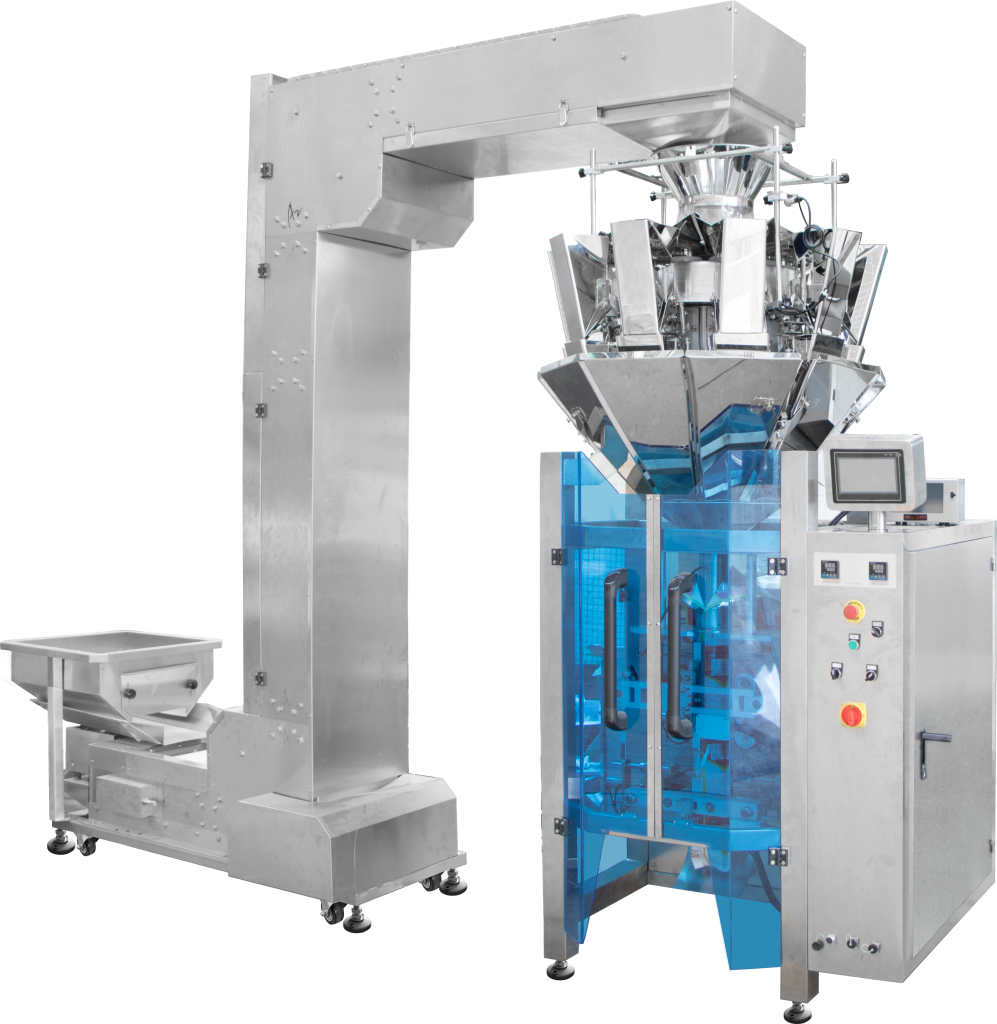

Large vertical type
Stable operation, low noise and low failure rate;
The transmission system is simple, making operation more reliable and maintenance more convenient;
The whole machine has a compact structure, is sturdy, rationally designed and simple;
Supports multi-language touch screen display, with intuitive and simple operation;
FEATURES
The human-machine interface makes parameter setting convenient and fast;
The self-diagnosis function for faults makes the fault display clear at a glance;
The process from metering, filling and bag making, date printing to product output is fully automatic and completed in one go;
Controlled by software, it is convenient for functional adjustment and technological upgrading, and will never fall behind.
BENEFITS
Stable operation, low noise and low failure rate;
The transmission system is simple, making operation more reliable and maintenance more convenient;
The whole machine has a compact structure, is sturdy, rationally designed and simple;
Supports multi-language touch screen display, with intuitive and simple operation;
SPECIFICATIONS
| Model | TCLB-320 | TCLB-420 |
| Film width | Max.320mm | Max.420mm |
| Film width Range(bag former) | 120-320mm | 140-420mm |
| Bag Width: | 50-150mm | 65-200mm |
| Bag Length: | 80-200mm | 80-300mm特殊定做到320mm |
| Film roll Diameter: | Max.320mm | Max.320mm |
| Packing rate: | 5-50bag/min | 5-50bag/min |
| Measurment range: | 150-1000ml | 150-1100ml |
| Film thickness: | 0.07-0.15mm | 0.07-0.15mm |
| Power: | 220V,50HZ, Single Phase | 220V,50HZ, Single Phase |
| Machine size: | (L)890*(W1306*(H)1137 | (L)1070*(W)1626*(H)1475 |
| Machine size: | (L)890*(W1306*(H)1384 | (L)1070*(W)1626*(H)1693 |
| Machine Weight: | 380kg | 350kg |
| Remark | Pneumatic Type | Pneumatic Type |
| Model: | TCLB-520T -Quad seal | TCLB-720T -Quad seal |
| Film width | Max.520mm | Max.720mm |
| Film width Range(bag former) | 280-520mm | 320-720mm |
| Front Width | 60-200mm | 90-260mm |
| Side Width | 50-90 mm | 50-120mm |
| Width is side seal | 5-10 mm | 5-10mm |
| Bag Length: | 150-400mm | 150-500mm |
| Film roll Diameter: | Max.350 | Max.350 |
| Packing rate: | 5-25bag/min | 5-25bag/min |
| Measurment range: | 150-2000ml | 150-3000ml |
| Film thickness: | 0.07-0.15mm | 0.07-0.15mm |
| Power: | 220V,50/60HZ, Single Phase | 220V,50/60HZ, Single Phase |
| Machine size: | (L)1500*(W)1220(H)1800 mm | (L)1700*(W)950(H)1900 mm |
| Machine Weight: | 750kg | 850kg |
| Remark | Pneumatic Type | Pneumatic Type |
