Overview
The packing machine—born from relentless research and development,and strictly in compliance global quality standards.All kinds of types of complete, professional packaging solutions, ready to meet every need you have.

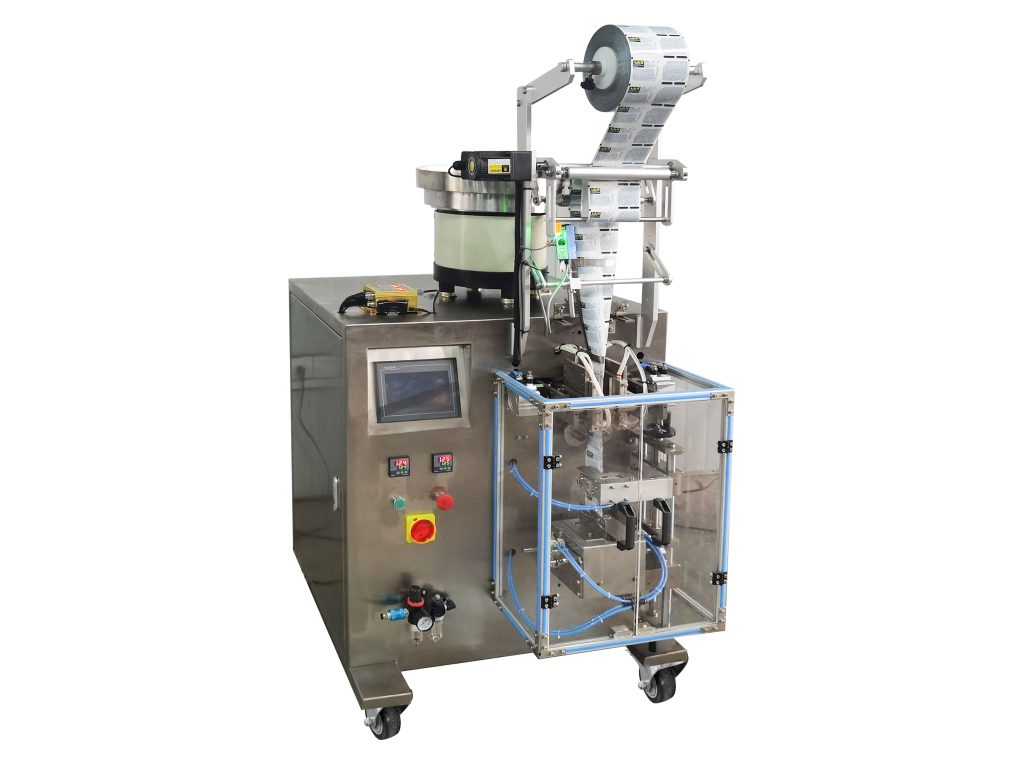

Screw machine
The human-machine interface makes parameter setting convenient and fast;
The self-diagnosis function for faults makes the fault display clear at a glance;
The process from metering, filling and bag making, date printing to product output is fully automatic and completed in one go;
Controlled by software, it is convenient for functional adjustment and technological upgrading, and will never fall behind.
FEATURES
The human-machine interface makes parameter setting convenient and fast;
The self-diagnosis function for faults makes the fault display clear at a glance;
The process from metering, filling and bag making, date printing to product output is fully automatic and completed in one go;
Controlled by software, it is convenient for functional adjustment and technological upgrading, and will never fall behind.
BENEFITS
Stable operation, low noise and low failure rate;
The transmission system is simple, making operation more reliable and maintenance more convenient;
The whole machine has a compact structure, is sturdy, rationally designed and simple;
Supports multi-language touch screen display, with intuitive and simple operation;
SPECIFICATIONS
| Model机型 | 260Host | 320Host | 420Host | 260T1 |
| Product包装产品 | Screws, nuts, flat washers and other hardware parts, plastic products, pharmaceutical granules 螺丝、螺母、平垫等五金件，塑料制品、医药颗粒 | Screws, nuts, flat washers and other hardware parts, plastic products, pharmaceutical granules 螺丝、螺母、平垫等五金件，塑料制品、医药颗粒 | Screws, nuts, flat washers and other hardware parts, plastic products, pharmaceutical granules 螺丝、螺母、平垫等五金件，塑料制品、医药颗粒 | Screws, nuts, flat washers and other hardware parts, plastic products, pharmaceutical granules 螺丝、螺母、平垫等五金件，塑料制品、医药颗粒 |
| Measurment计量方式 | Vibration count: number of light curtain points, number of track points 振动盘点数：光幕点数、轨道点数 | Vibration count: number of light curtain points, number of track points 振动盘点数：光幕点数、轨道点数 | Vibration count: number of light curtain points, number of track points 振动盘点数：光幕点数、轨道点数 | Single vibration count: number of light curtain points, number of track points 单振动盘点数：光幕点数、轨道点数 |
| Film width(Bag former)膜宽 | 60-260mm | 50-320mm（260改320 机， 三边封膜宽只到300mm） | 120-420mm | 60-260mm |
| Bag width 袋宽 | 20-120mm | 20-150mm（260改320 机， 三边封最大袋子宽度只能150mm） | 50-200mm | 20-120mm |
| Bag length袋长 | 30-150mm | 150mm,可2次拉膜 | 250mm | 30-150mm |
| Packing speed包装速度 | 1-100bag/min | 1-100bag/min | 1-100bag/min | 1-100bag/min |
| powder电压功率 | 220V 50HZ 1.2KW | 220V 50HZ 1.2KW | 220V 50HZ 1.2KW | 220V 50HZ 1.2KW |
| Package包装形式 | 三边封、背封，不可做四边封 Three-side seals and back seals are not allowed; four-side seals | 三边封、背封，不可做四边封 Three-side seals and back seals are not allowed; four-side seals | 三边封、背封，不可做四边封 Three-side seals and back seals are not allowed; four-side seals | 三边封、背封，不可做四边封 Three-side seals and back seals are not allowed; four-side seals |
| Horizontal sealing横封 | straight line 5-8mm | straight line 5-8mm | straight line 15mm | straight line 5-8mm |
| Vertical sealing纵封 | overlapping curve12mm | overlapping curve12mm | overlapping curve15mm | overlapping curve12mm |
| Size机器尺寸 | 1150mm*800mm*1350mm | 863mm*904mm*1419mm | 954*1015*1815mm | 1150mm*800mm*1350mm |
| Weight机器重量 | 150KG | 286kg | 350kg | 180KG |
| Thickness of packaging film包装膜厚度 | 0.03-0.06mm | 0.03-0.06mm | 0.03-0.06mm | 0.03-0.06mm |
